B-7505 Rain Defence Louvres

  • B-7505
  • 3D VIEW

B-7505

3D VIEW

Bold Line rain defence louvres utilising two blade depths to allow creation of unique façade designs, customised with patterns, colours and shadow lines.

null
null

INTAKE

null

EXHAUST

null
  • null
    Complex extruded blade design featuring multiple channels for maximum rain defence performance
  • null
    Choice of mullion styles, accent blade arrangements and colours for a truly bespoke façade look.
    Visible butt joint Recessed mullion Hidden mullion
  • null
    Delivered to site as pre-fabricated modules for efficient installation
  • null
    Sightproof design
View 3D Model
Download Data Sheet
View Test Data

KEY FEATURES

  • Blade Orientation: Horizontal
  • Mullion Type: Visible, recessed or hidden
  • Louvre Depth: 183mm
  • Blade Pitch: 51mm
  • Weight: 27kg/m2 based on a 2m x 2m module size

Download data sheet for sectional details

Download Data Sheet

PERFORMANCE

SUMMARY
  • Rain Penetration Class: A up to 2.5m/s
  • Airflow Class: 2 (entry), 3 (discharge)
  • Airflow Coefficient Ce (entry): 0.324
  • Airflow Coefficient Cd (discharge): 0.273
  • K factor (entry / discharge): 9.526 / 13.418
null
null

INTAKE

null

EXHAUST

WIND DRIVEN RAIN PERFORMANCE (EN 13030:2001)
Core Ventilation Rate (m/s)0,00,51,01,52,02,53,03,5
Penetration Class (13m/s & 75mm/hr)AAAAAAAA
Effectiveness (%)10099,299,8799,7599,6899,5198,5198,04
AirflowCoefficient of Entry Ce0,324Class 2Coefficient of Discharge Cd0,273Class 3
RESISTANCE TO AIRFLOW

RESISTANCE TO AIRFLOW – ENTRY (Ce)2

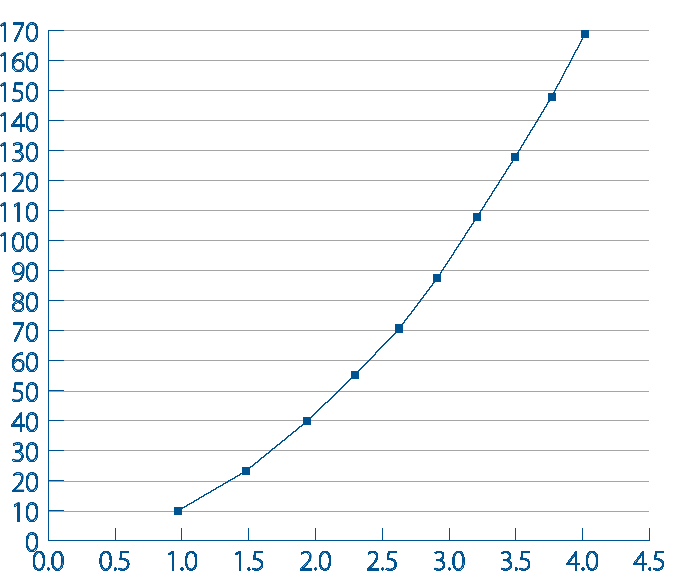

RESISTANCE TO AIRFLOW – DISCHARGE (Cd)2

Note: Based on a 1m x 1m size. Smaller louvres may have a higher Pressure Drop.

MATERIALS & FINISHES

MATERIALS
  • Aluminium alloy 6063-T6
FINISH OPTIONS
  • Mill finish
  • Clear or colour anodised
  • Polyester powder coated Matt (standard) or gloss

OPTIONAL EXTRAS

  • Head / cill / jamb cover plates
  • Blanking panels (single skin or insulated)
  • Bird / vermin guards, insect mesh
  • Louvred doors
  • Dampers
View all accessories
