RSH-5700AL Rain Defence Louvres

  • RSH-5700AL
  • 3D VIEW

RSH-5700AL

3D VIEW

High performing louvres offering great protection against wind-driven rain penetration, good airflow and a continuous line appearance on a façade.

null
null

INTAKE

null

EXHAUST

null
  • null
    Complex extruded blade design for maximum rain defence performance
  • null
    Multiple channels in blades and vertical components to collect and drain water from the louvred area
  • null
    Louvre blades are cut out around recessed black mullions for a continuous line appearance
  • null
    Sightproof design
  • null
    Delivered to site as pre-fabricated modules for efficient installation
View 3D Model
Download Data Sheet
View Test Data

KEY FEATURES

  • Blade Orientation: Horizontal
  • Mullion Type: Recessed
  • Louvre Depth: 129mm
  • Blade Pitch: 51mm
  • Weight: 27kg/m2 based on a 2m x 2m module size

Download data sheet for sectional details

Download Data Sheet

PERFORMANCE

SUMMARY
  • Rain Penetration Class: A up to 3.0m/s
  • Airflow Class: 3 (entry & discharge)
  • Airflow Coefficient Ce (entry): 0.289
  • Airflow Coefficient Cd (discharge): 0.284
  • K factor (entry / discharge): 11.973 / 12.398
null
null

INTAKE

null

EXHAUST

WIND DRIVEN RAIN PERFORMANCE (EN 13030:2001)
Core Ventilation Rate (m/s)0,00,51,01,52,02,53,03,5
Penetration Class (13m/s & 75mm/hr)AAAAAAAB
Effectiveness (%)10010010099,899,999,899,998,7
AirflowCoefficient of Entry Ce0,289Class 3Coefficient of Discharge Cd0,284Class 3
RESISTANCE TO AIRFLOW

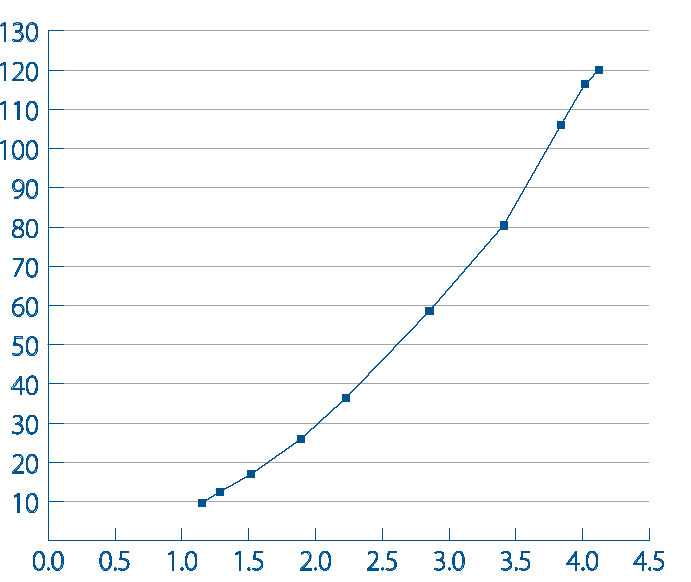

RESISTANCE TO AIRFLOW – ENTRY (Ce)2

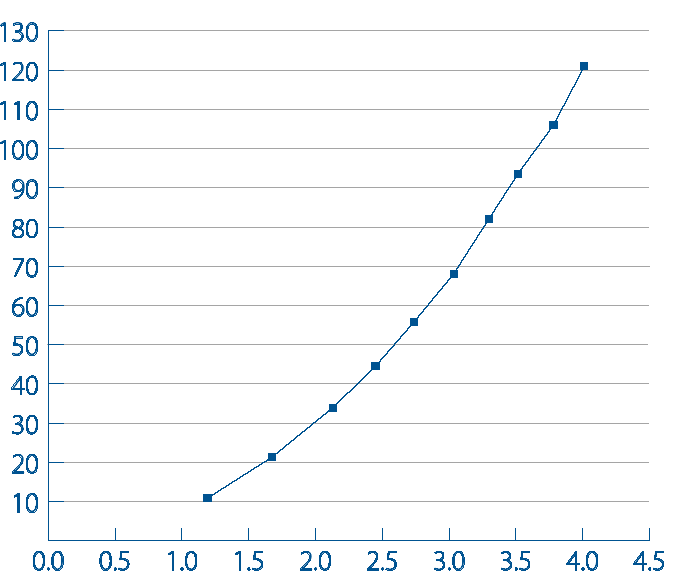

RESISTANCE TO AIRFLOW – DISCHARGE (Cd)2

Note: Based on a 1m x 1m size. Smaller louvres may have a higher Pressure Drop.

MATERIALS & FINISHES

MATERIALS
  • Aluminium alloy 6063-T6
FINISH OPTIONS

Mullions powder coated black as standard.
Louvre blades and perimeter frames:

  • Mill finish
  • Clear or colour anodised
  • Polyester powder coated Matt (standard) or gloss

OPTIONAL EXTRAS

  • Head / cill / jamb cover plates
  • Blanking panels (single skin or insulated)
  • Bird / vermin guards, insect mesh
  • Louvred doors
  • Dampers
View all accessories
