B-6485 Ventilation Louvres

  • B-6485
  • 3D VIEW

B-6485

3D VIEW

Bold Line ventilation louvres utilising two blade depths to allow creation of unique façade designs, customised with patterns, colours and shadow lines.

null
null

INTAKE

null

EXHAUST

  • null
    Widely spaced extruded blades for maximum airflow performance
  • null
    Choice of mullion styles, accent blade arrangements and colours for a truly bespoke façade look.
    Visible butt joint Recessed mullion Hidden mullion
  • null
    Delivered to site as pre-fabricated modules for efficient installation
View 3D Model
Download Data Sheet
View Test Data

KEY FEATURES

  • Blade Orientation: Horizontal
  • Mullion Type: Visible, recessed or hidden
  • Louvre Depth: 159mm / 207mm
  • Blade Pitch: 100mm
  • Weight: 15kg/m2 based on a 2m x 2m module size

Download data sheet for sectional details

Download Data Sheet

PERFORMANCE

SUMMARY
  • Rain Penetration Class: C up to 1.5m/s
  • Airflow Class: 2 (entry & discharge)
  • Airflow Coefficient Ce (entry): 0.370
  • Airflow Coefficient Cd (discharge): 0.331
  • K factor (entry / discharge): 7.305 / 9.127
null
null

INTAKE

null

EXHAUST

WIND DRIVEN RAIN PERFORMANCE (EN 13030:2001)
Core Ventilation Rate (m/s)0,00,51,01,52,02,53,03,5
Penetration Class (13m/s & 75mm/hr)CCCCDDDD
Effectiveness (%)91,886,483,481,279,276,368,562,5
AirflowCoefficient of Entry Ce0,370Class 2Coefficient of Discharge Cd0,331Class 2

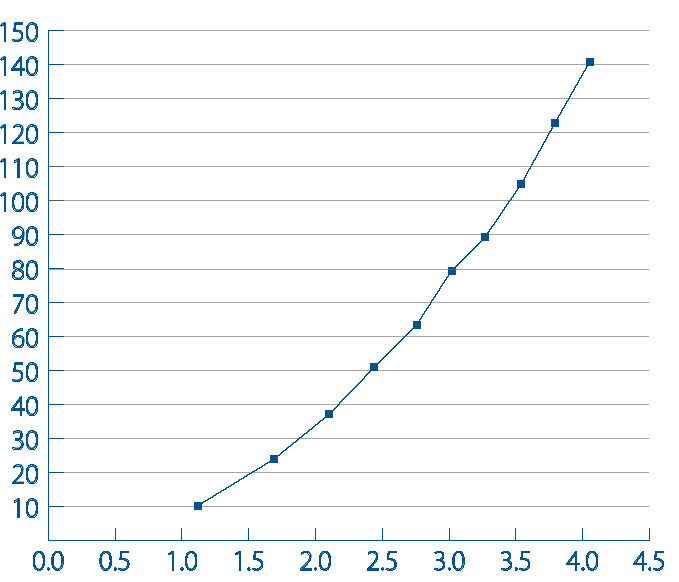

RESISTANCE TO AIRFLOW

RESISTANCE TO AIRFLOW – ENTRY (Ce)2

RESISTANCE TO AIRFLOW – DISCHARGE (Cd)2

Note: Based on a 1m x 1m size. Smaller louvres may have a higher Pressure Drop.

MATERIALS & FINISHES

MATERIALS
  • Aluminium alloy 6063-T6
FINISH OPTIONS
  • Mill finish
  • Clear or colour anodised
  • Polyester powder coated Matt (standard) or gloss

OPTIONAL EXTRAS

  • Blanking panels (single skin or insulated)
  • Bird / vermin guards, insect mesh
  • Louvred doors
  • Dampers
View all accessories
